INTRODUCTION

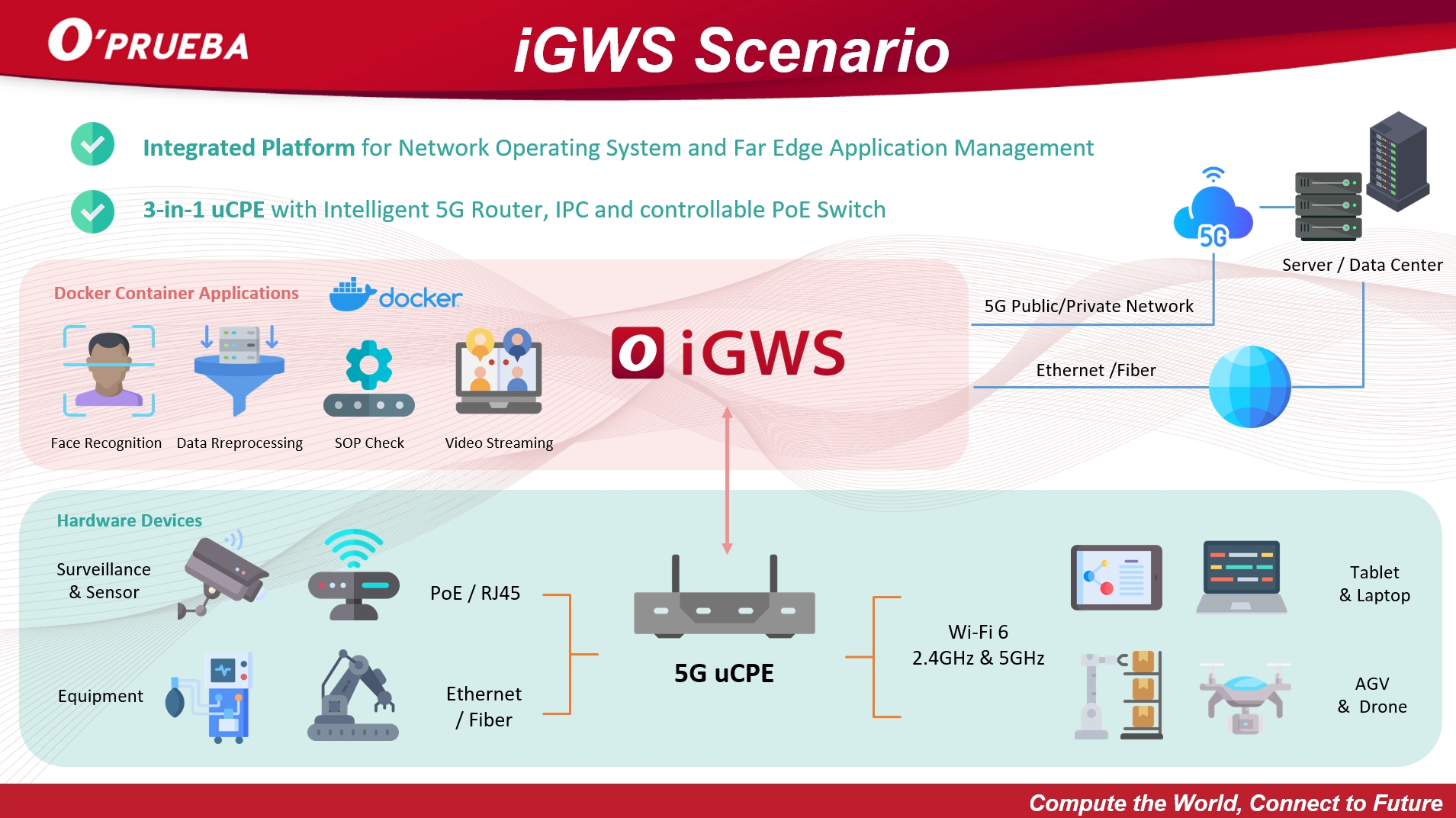

iGWS (Intelligent Generative Wireless System)

iGWS is an all-in-one Network Operating System (NOS) for Universal CPE (uCPE) or FWA equipment to provide not only flexible forwarding services but also outstanding computing performance. iGWS supports all communication channels (fiber, copper, cellular), the total solution for all data services through a single platform with multiple WAN ports including 5G technology, making it an excellent solution for enterprise scenarios. Also, in the transition from 4G to 5G, iGWS works with both 5G SA and 5G NSA so that it can help facilitate a smooth and rapid introduction of 5G services.

With cost-effective network access providing uninterrupted Internet connectivity and 5G transmission throughput of over 1 Gbps, iGWS also features containerized microservices and maximum x86-based computing power, enabling MEC and Far Edge Computing use cases suited to the agility, scale, and reliability requirements of modern cloud applications.

FEATURE

Maximum Performance

Maximum Performance
  • Powered by X86-based and ARM Computing Platform
  • Enable MEC (Multi-access Edge Computing) use cases
  • Ensure real-time response & great mobility

5G Access with High Throughput

5G Access with High Throughput
  • Permit 5G SA/NSA access to the Internet
  • Achieve Sub 6G throughput of over 1 Gbps for eMBB use cases
  • Support mmWave (by Hardware)
  • Comply with 3GPP Release 15

Intelligent Switching & Routing

Intelligent Switching & Routing
  • Support 4G, 5G, wired, Wi-Fi 5 & Wi-Fi 6
  • Adaptive to traffic changes
  • Optimally utilize network resources
  • Reduce deployment costs

Plug & Play Design

Plug & Play Design
  • Easy to install
  • Configure & upgrade smoothly
  • Ensure real-time response & great mobility

Agile & Scalable Architecture

Agile & Scalable Architecture
  • Based on containerized microservices
  • Manage and evolve smoothly
  • Offer fast application scale-up service

Seamless Failover & Load Balancing

Seamless Failover & Load Balancing
  • Leverage Multiple-WAN design
  • Guarantee uninterrupted Internet
  • Increase available bandwidth
  • Easy to manage & maintain

Top-notch Security

Top-notch Security
  • Secure with IPv4/IPv6 Firewall
  • Safeguard business integrity & continuity
  • Ensure real-time response & great mobility

Intuitive Interfaces

Intuitive Interfaces
  • Manage with web GUI
  • Guarantee clarity, control & consistency
  • Facilitate management process

SPECIFICATIONS

Intelligence Forwarding Solutions

  • Software-Defined Network
  • Single Point Network Slicing for SLA
  • Heterogeneous interface Orchestration
  • Never Stop Connection with Hybrid WAN
  • Flexible Deployed Routing and Switching

Mobile Network

  • Support 5G NSA and SA standards
  • Signaling Information
  • Fully compatible with 4G networks
  • Multiple APN support
  • SIM card IMSI binding
  • eSIM support (optional)

API

  • 150+ Standard API
  • Integrating APIs to 3rd party control systems (NMS)
  • Connect to Controlador for Zero Touch Provision and Centralized Control

Failover & Load Balancing

  • Leverage Multiple-WAN design
  • Guarantee uninterrupted Internet
  • Smart Failover & Failback
    (Mobile Network, WiFi, Ethernet)
  • Increase available bandwidth
  • Easy to manage & maintain

Container APP

  • Based on containerized microservices
  • Management and smooth development
  • Offer fast application scale-up service
  • Provide Official containers in App Store
  • Easy to install Docker container

Statistics & Logs

  • Usage activity
  • Visualize network traffic
  • Connected devices
  • POE Power Information
  • System、Mobile、Diagnose logs
  • Port type change log
  • Export log

Diagnose

  • Speedtest ( Performance metrics of WAN port)
  • iPerf (server and client mode)
  • Cell Scanner
  • Ping
  • Traceroute
  • Diagnose scheduler

Network Interface

  • Mobile network
  • Ethernet
  • WiFi 6 / WiFi 6E
  • PoE
  • SFP
  • Console port

Multiple WAN

  • Self-Define Multiple WAN
  • Guarantee uninterrupted Internet
  • Smart Failover & Failback
  • Load Balancing

Software-Defined Port Type

  • Easily switch between WAN and LAN port
  • Dynamic adjustment-related pages

Wi-Fi

  • Multi-SSID
  • WPA3 / WPA2 / WPA1
  • AP mode & Client mode ( by module)

Firewall

  • Access Control List
  • Port forwarding
  • NAT

VLAN

  • Port mode (Access, Truck)
  • Support Multi-SSID
  • Support Ethernet port

Power over Ethernet

  • Total PoE power budget control
  • Toggle PoE function

OTA

  • Mobile Remote Control
  • Firmware upgrade

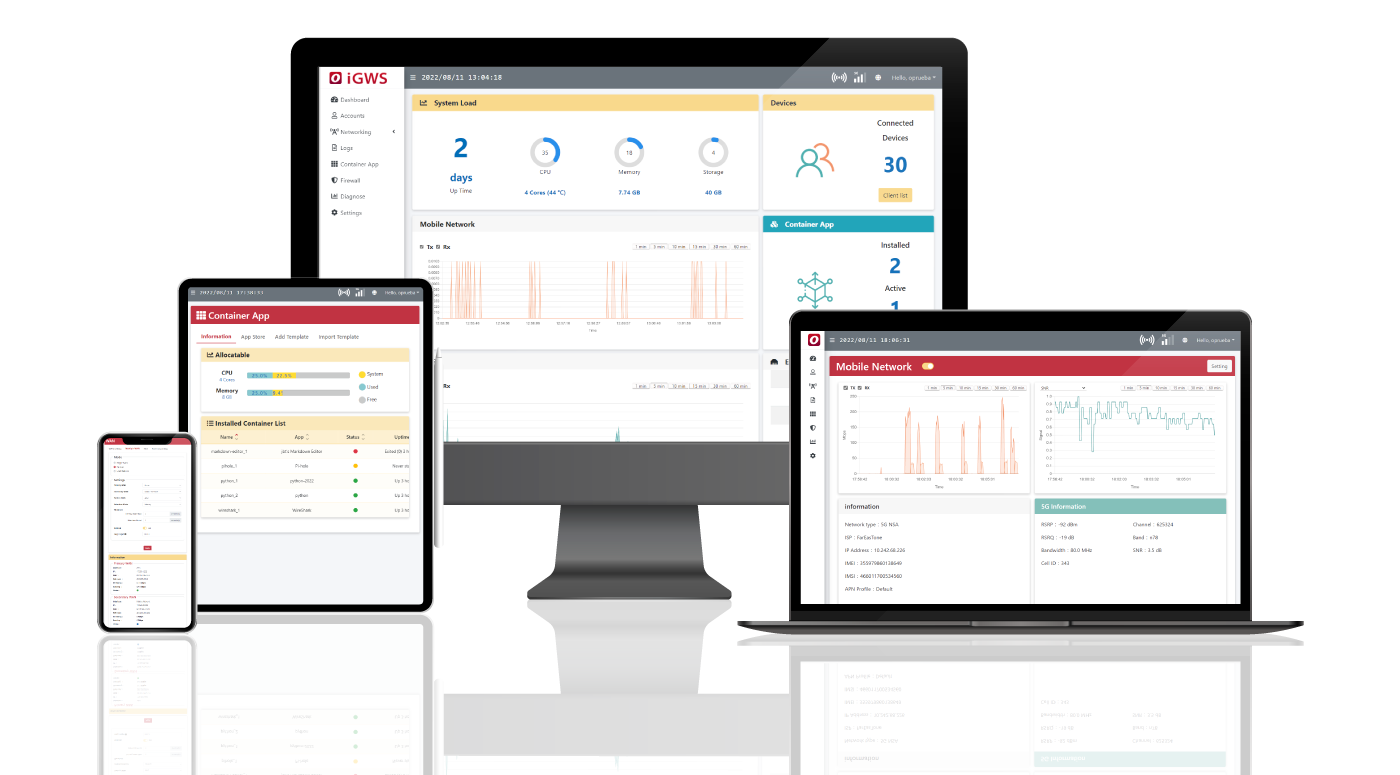

Intuitive Management

  • Manage with web GUI
  • Facilitate management process
  • Graphical connection status
  • Connect via SSH

HARDWARE COMPATIBILITY LIST

Brand Model CPU GPU Sub 6G mmWave Wi-Fi Ethernet (RJ45) SFP PoE+ PoE++ PD USB Power
Inventec E200G4 Intel® Core™ V V 5
  • 2.5G x 2
USB3.2 X 2
USB2.0 X2
60W
Lanner NCA-1516 Intel Atom® V option option
  • 1G x 6
10G x2 USB3.0 X 2 60W
KSH WPC-632-PICM4 ARM v8 V V 5
  • 1G x 1
  • 100Mbps x 1
USB3.0 X 2
USB2.0 X2
24W
NEXCOM DTA 1164W Intel Atom® V 5
6/6e
  • 1G x 6
1G x 2 Option
Max: 2
USB3.0 X 2 65W
NEXCOM DFA 1163 Series Intel Atom® V V 5
6/6e
  • 2.5G x 2
  • 1G x 2
  • 1G x 8
    (Switch ports)
1G x 1
10G x1
Option
Max: 12
USB3.0 X 2 90W
NEXCOM NSA 7150 Series Intel® Xeon® V Option Option
  • 1G x 1
  • Extend module
1G x 1 USB3.0 X 2 1300W
NEXCOM DTA 1376/1376A NXP®
Layerscape®
V
  • 1G x 7
1GX1 USB3.0 X 2 40W
Raspberry Pi Pi 4 ARM v8 V 5
  • 1G x 1
USB3.0 X 2
USB2.0 X2
15W
